Specification
Product: DIADEM® DiaDrain-60H
Producer’s certificate: A.P.P. Kft.
Website: www.diadem.com
Advantages
• High rain- and irrigation-water retention approx. 30,5 l / m2 water storage capacity
• Increased contact surface heightened protection of the waterproofing through the favorable weight distribution
• Long-term ventillation of the root area increased diffusion openings
• Durable and high compressive strength material (HIPS) no water cooling needed during summer installations
• Preventing the sinking of the filter layer dedicated support cones
• Suitable for flooded blue roof Flooding height with approx. 50 mm; with the combination of DiaDrain-60H-UP as a DiaDrain-120 WM watermanagement system up to 100 mm water level

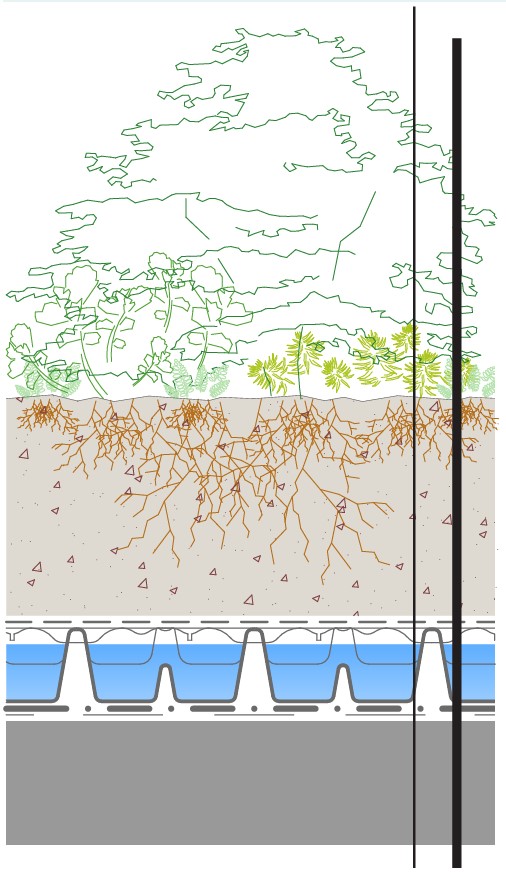

DIADEM® build-up
- intensive vegetation
- intensive substrate
- VLF-200 separation and filter geotextile
- DiaDrain-60H drainage board
- VLS-500 protection geotextile with moisture retention
- root-resistant waterproofing membrane
- additional layers
Application
Rainwater-retention and flow-delay drainage board for semi-intensive or intesive roof gardens, for green roofs with flooded irrigation system and for paved roofs with sporadical traffic, eg. car parks.
Technical data
| Board size (mm): 1940x940x60 |
| Water storage capacity (l/m2): 30,45 |
| Fire classification: Class E regarding DIN EN 13501-1 |
| Fill-up volume (l/m2): approx. 40 |
| Weight (+/- 5%, kg/m2): 2,2 |
| Compressive strength (unfilled, average, kN/m2): 122 |
| Material: recycled high-impact polystyrene (HIPS) |
| Water flow capacity EN ISO 12958 (l / mxs): at 2%: 2.02 • at 5%: 3.32 • at 10%: 4.78 |
| Storage: horizontally, for long-term storage protect from UV radiation |
| Installation: collided, covered immediately after laying |
