RDA / RDB / RDL

Edging elements with WPC, bio-composite or acacia covered front panel and sitting surface

Product Details

Download information sheet

Product Description

RDA
“A”-shaped plastic edging element with a front panel and upper edge, featuring an internal cable channel for concealed wiring and piping. The cable channel is installed upon request. Includes the necessary fastening elements. Upon customer request, lighting fixtures and sockets can be integrated. Material: Frame made of recycled material; optional coverings: acacia, recycled material, paintable PP, WPC. Maximum dimensions: 115 × 46 × 70 cm (L × W × H); color: grey.

RDB
Lightweight, curved plastic edging element with reinforcing ribs. Includes the necessary fastening elements. Front panel: polypropylene; base plate: made of recycled polyethylene or recycled material, considering the maximum curvature. Size: 100 × 40 × 12 cm (L × W × H); color: grey; optionally painted according to the RAL color chart.

RDL
Lightweight, “L”-shaped plastic edging element with reinforcing ribs. The delivery package includes stainless steel fasteners for connecting the edging elements. Front panel: polypropylene or recycled polyethylene; base plate: recycled polyethylene. Size: 115 × 19 × 12 cm (L × W × H); color: grey; surface treatment (optional): painted according to the RAL color chart.

RDT
“T”-shaped plastic edging element for green roof layer separation, with a painted front panel, reinforcing ribs, and stainless steel fasteners for connecting the edging elements. Material: polypropylene. Size: 150 × 38.5 × 48 cm (L × W × H).

Advantages

Any kind of tracing is possible, quick installation
Light, small structure weight
Doesn‘t need on site concreting
Arches may be formed
Aesthetic, adaptable finish to the style of the building
May be ordered with mechanical channels, standard in case of RDA
Can be equipped with different lamps or other fittings
Available with various cover mateials
Water retaining parts (flowerboxes, pools) may also be created
RDB and RDL elements can be combined with each other, taking the coverings into account

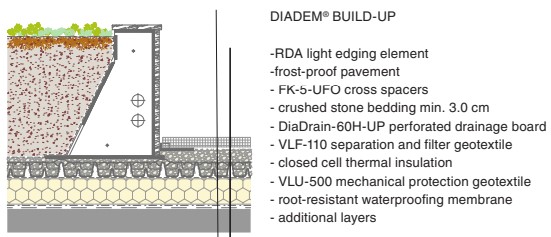

DIADEM® build-up

Application

The RD type products are suitable for the bordering of buildings of different layers sizes with extensive and intensive green roofs and other gardens, edging elements to be used by mounting. May be used also as formwork remaining in the structure

Technical data

	RDA	RDB	RDL	RDT
Material	recyclate	recyclate	recyclate	recyclate
Colour	available in RAL colors	available in RAL colors	available in RAL colors	available in RAL colors
Standard length (cm):	115	115	115	115
Max height (cm):	70	70	70	20
