Advantages
- Economical, as it does not require concreting on site
- Quickly implementable
- Can be installed dry
- Timeless, stabile

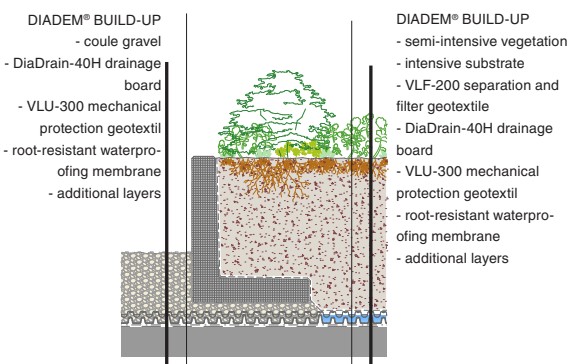

DIADEM® build-up
GRAVEL ROOF:
-Shingle stone
–BW-50
-DD-40H drainage layer (filled with crushed stone)
-VLU-300/500 mechanical protection textile
-Root-resistant waterproofing
GREEN ROOF:
-Vegetation (semi-intensive/intensive)
–BW-50
-VLF-200 filter geotextile
-DD-40H drainage layer
-VLU-300/500 mechanical protection textile
-Root-resistant waterproofing
Application
The BW type products are dry installable stemmed concrete edging elements, which can be used for buttressing, edging superstructures of different layer thickness, and also for the formal designing of the garden.
Specification
Frost-resistant concrete with raw, exposed surface used for the clear demarcation
of gardening spaces and the creation of a variety of garden forms. Concrete strength class: C 20/25; material required: 2.5 pcs/lm.
Product: DIADEM® BW
Manufacturer‘s certificate: APP Kft.
Website: www.diadem.com
Technical data
| Product number | Height [cm] | Length [cm] | |
|---|---|---|---|
| BW-30 | 161002 | 30/20 | 40 |
| BW-30-AE | 161008 | 30 | 40 |
| BW-40 | 161006 | 40 | 40 |
| BW-40-AE | 161012 | 40 | 40 |
| BW-50 | 161013 | 50 ± 0,5 | 40 ± 0,5 |
| BW-50-AE | 161015 | 50 | 40 |
| BW-60 | 161003 | 60 ± 0,5 | 40 ± 0,5 |
| BW-60-AE | 161014 | 60 | 40 |
| BW-80 | 161004 | 80 ± 0,5 | 40 ± 0,5 |
| BW-80-AE | 161016 | 80 | 40 |
| BW-100 | 161005 | 100 ± 0,5 | 40 ± 0,5 |
| BW-100-AE | 161017 | 100 | 40 |
| Width [cm] | Thickness [cm] | Weight [kg] | |
|---|---|---|---|
| BW-30 | 20/30 | 6-9 | 29 |
| BW-30-AE | 40 | 6-9 | 45 |
| BW-40 | 40 | 8-10 | 55 |
| BW-40-AE | 40 | 8-10 | 75 |
| BW-50 | 40 ± 0,5 | 8-10 | 64 |
| BW-50-AE | 40 | 8-10 | 85 |
| BW-60 | 40 ± 0,5 | 8-10 | 72 |
| BW-60-AE | 40 | 8-10 | 95 |
| BW-80 | 40 ± 0,5 | 10 | 96 |
| BW-80-AE | 40 | 10 | 127 |
| BW-100 | 50 ± 0,5 | 10 | 126 |
| BW-100-AE | 40 | 10 | 170 |
