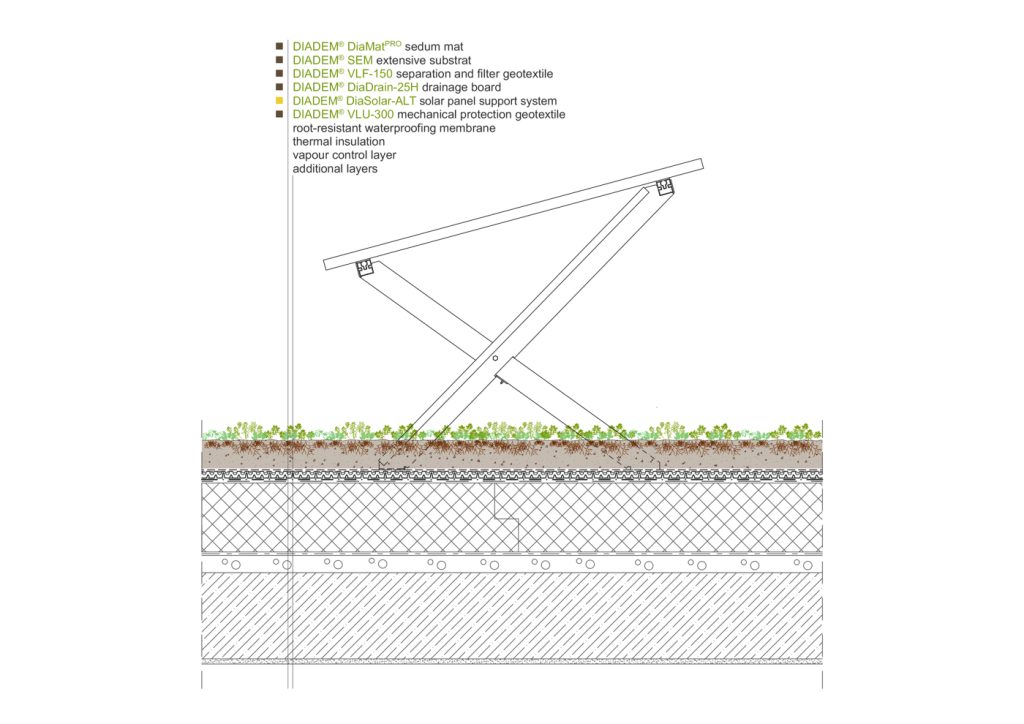

DIADEM® build-up
Product Data Sheet

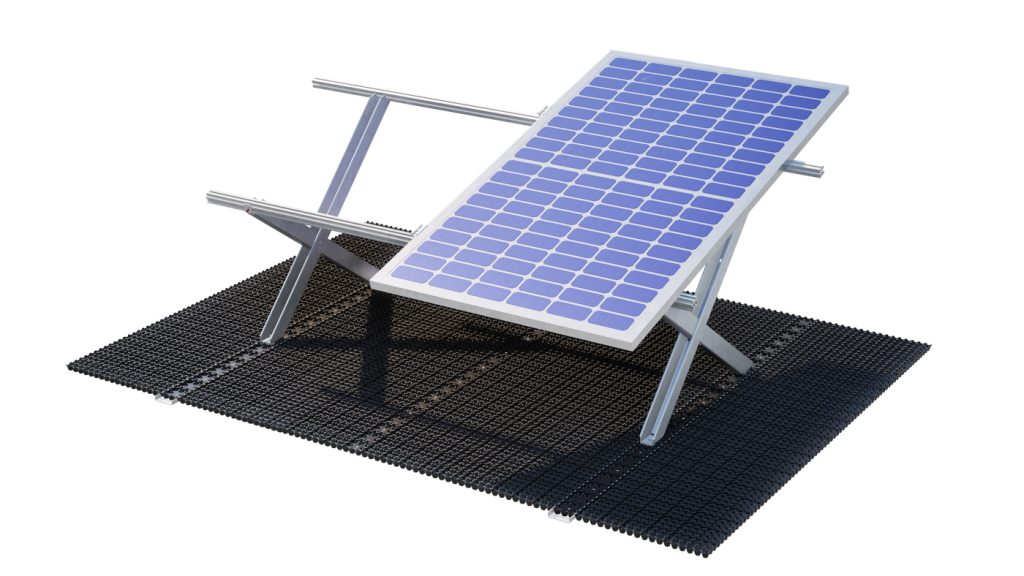

Penetration-free, quick-to-install, cost-effective PV mounting a. Weather-resistant design with a minimum panel height of 30 cm for optimal ventilation. Ideal for green roofs or gravel-ballasted surfaces. Recommended layer structure: plant substrate, drainage plate, geotextile.
| Unit | DiaSolar ALT | |
| Panel size of DiaSolar: | mm | Standard: 2020 × 1100 × 25 Compatible with other sizes |
| Weight: | kg / pcs | 4.5 (without load,without pv-modul) |
| Material: | Aluminium | |
| Module inclination: | 10–15° (standard) / 5–35° (in 5° increments) | |
| Ballasting: | The ballast and spacing of the panel must be calculated by DIADEM® in accordance with the Wind Zone Plan | |
| Roof connection: | No structural connection to the roof required | |
| Roof inclination: | maximum 5° | |
| DiaDrain-25H drainage board | Compatible with other sizes | |
| Water storage capacity: | l / m2 | 11.8 |
| Compressive strength (unfilled): | kN / m2 | 510 (±10%) |
| Water drainage capacity 20 kPa, i=0,01 |
l / (m × s) | 0.35 (± 5%) |
| Water drainage capacity 20 kPa, i=1 |
l / (m × s) | 3.60 (±5%) |
