DiaTray

Sedum trays

Product Details

Download information sheet

Specification

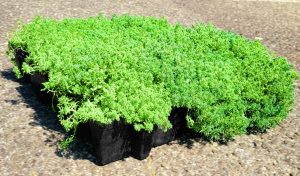

Tray of Sedum includes a mat of at least 6-7* different Sedum species. Dimensions: 58,8 x 38,8 cm, height: 8 cm.

Product: DIADEM® DiaTray
Producer’s certificate: A.P.P. Kft.
Website: www.diadem.com

Advantages

  • Economical solution
  • Guaranteed crow flock association reared under controlled conditions, providing a beautiful green roof
  • Resistant, hardy vegetation
  • The tray design ensures quick installation
  • Due to the tray design, no additional erosion control is required on sloped roofs
  • Can be installed regardless of the season
  • With our company’s professional support, self-installation is possible
  • Due to its weight, it can be used on professionally constructed wooden and steel lightweight structures
  • During possible roof maintenance or waterproofing repairs, it can be locally dismantled and reassembled with minimal cost and without damaging the vegetation and trays
  • During long transportation, the chance of plant damage is minimal with the optional use of spacers

DIADEM® build-up

  1. DiaTray sedum tray (sedum + SEM growing media)
  2. VLU-300 mechanical protection geotextile
  3. root-resistant waterproofing membrane
  4. additional layers

Technical data

Sedum species, number of species (pc):  6-7*

Dimension (cm): 58,8 x 38,8

Height (cm): 8

Weight (kg/m2): approx. 55-60 (dry condition: approx. 35)

Vegetation coverage (%): min. 80

Delivery: on pallet

Storage: can be stored for a long time when removed from the pallet without installation

*As a result of changes in climatic conditions, 1 or 2 of the species planted may become dominant, while some species may disappear.

Distribution of sedum varieties planted:
Sedum Hispanicum: 80%
Sedum Album: 10%
Sedum Acre Golden Carpet: 5%
Sedum Sexangulare: 5%
